Gairnshiel Jubilee Bridge

Nomination

Category

Public Realm/Landscaping

Company

Moxon Architects Ltd

Client

Aberdeenshire Council

Summary

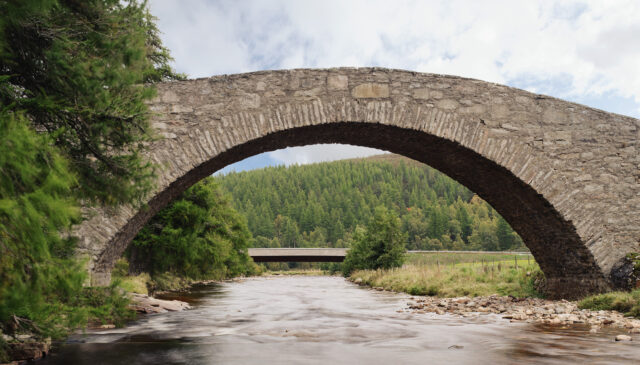

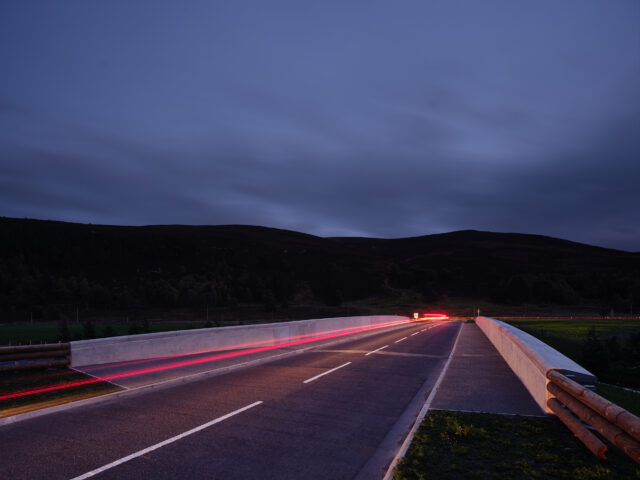

The Gairnshiel Jubilee Bridge is built parallel to the 1749 Gairnshiel Bridge, which was no longer suitable for modern day traffic and, despite the implementation of weight restrictions in 2016, its geometry, narrow width and tight approach created difficulty for many vehicles resulting in regular bridge strikes that caused significant structural damage and disruptive road closures. With the aim of improving access over the River Gairn, the new bridge has two lanes of traffic and is capable of carrying large goods vehicles, eliminating the need for 58km detours caused by bridge damage.

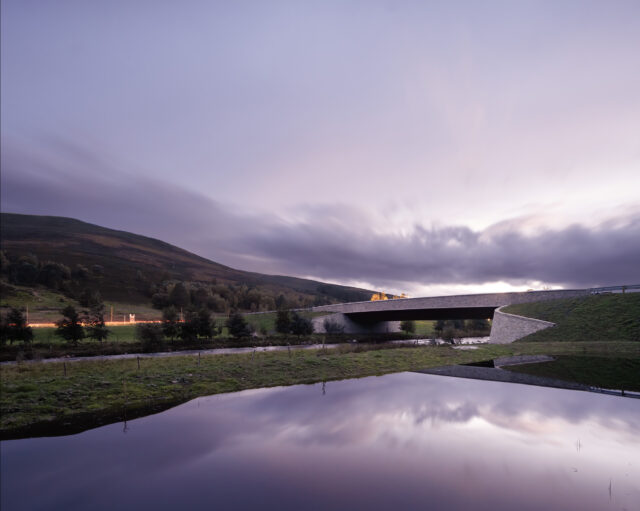

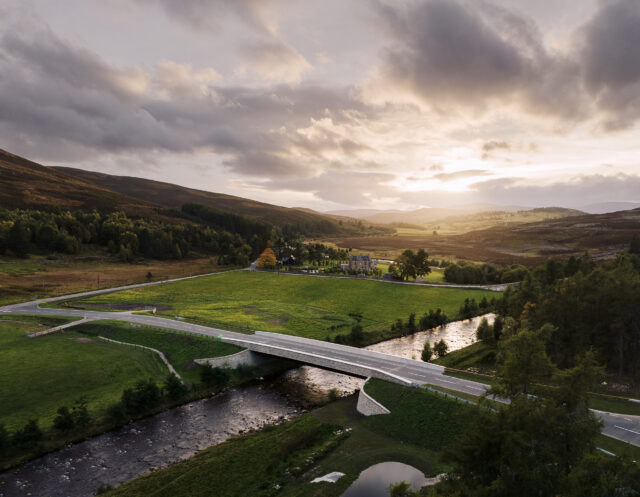

Drawing on detailed analysis of the existing bridge and assessing the technical requirements of the new location, the new bridge was designed to respond to three key considerations: the river flood levels, which required a single clear span; the low alignment of the highway, which required the bridge to have a slender profile in elevation; and the desire to create a sculptural yet robust form that responds to the natural formation of the glen while complementing the adjacent 18th-century structure. The original Gairnshiel Bridge was built following the second Jacobite rising as part of a military road.

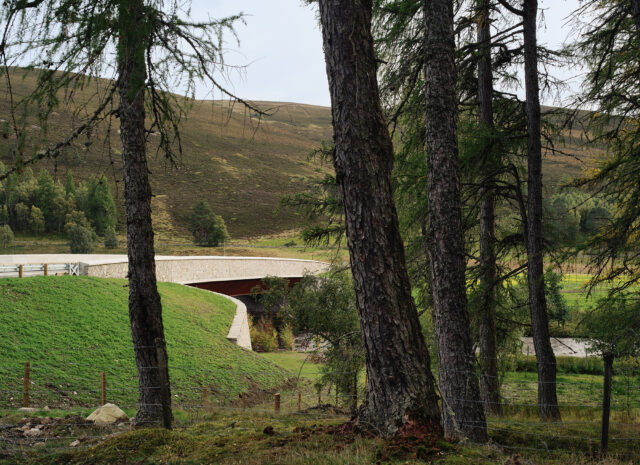

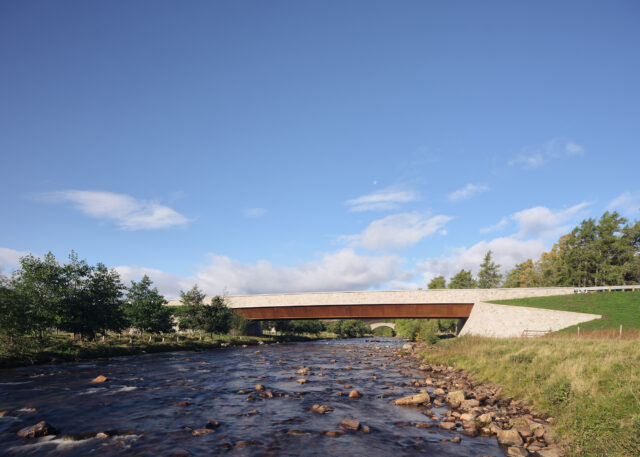

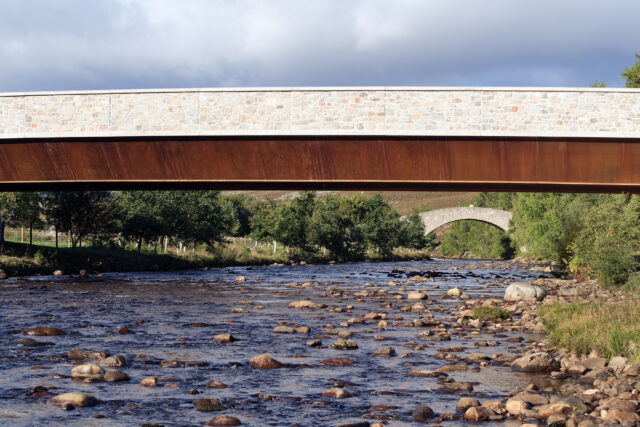

Featuring a slim-line, bold geometry and robust materials including recycled, locally sourced granite for the parapets and embankments and weathering steel structure for the primary structure, the new Gairnshiel Jubilee Bridge is designed to have a distinct point of difference from the old while also intended as a contemporary interpretation of the original structure. The new bridge maintains a slender profile by tapering the cross section of the lower portion of the structure. This delivers the necessary structural performance while making the construction depth appear thinner at the outer edges.

“After years of advocacy and consultations with historic bodies and the local community, we are pleased to have completed the Gairnshiel Jubilee Bridge. The new crossing is a simple, but confident companion to the original 18th century masterpiece of military engineering. As well as being a practical solution, our design is rooted in the immediate context of the Cairngorms and reflects the elegant form of the original structure a short distance down the glen, which we are glad to have helped preserve for future generations.”

Links

https://www.moxonarchitects.com

Photographer

Simon Kennedy
